FileUpload上傳後，圖片檔名存進DB #3-- jQuery的 fancyBox特效（展示圖片）－MIS2000 Lab -- ASP.NET專題實務 / WebForm + MVC線上教學影片

本系列有多篇文章，延續上一篇

http://mis2000lab.pixnet.net/blog/post/34543487

之前完成的範例 ListView + FileUpload

做出類似 PChome首頁的效果 -- 棋盤式的資料展示，還有產品圖片

原本的範例，加上jQuery的「fancyBox套件」，讓圖片展示的時候，更有效果。

（您可以到fancyBox的網站上面，自己試玩看看。有Demo可以展示）

即使不懂 jQuery與 JavaScript語法，一樣可以把這個套件給加入 ASP.NET網頁裡面。

但是......

*********************************************************************************************

如果您連「基本的HTML標籤」都不懂，以及

「網站的URL路徑、您放在Web Server硬碟裡面的圖片路徑，兩者寫法略有不同」也不懂的話

*********************************************************************************************

這個範例就進行不下去了

倘若這種基本觀念都不懂，那麼連上面的範例應該也作不出來吧？？

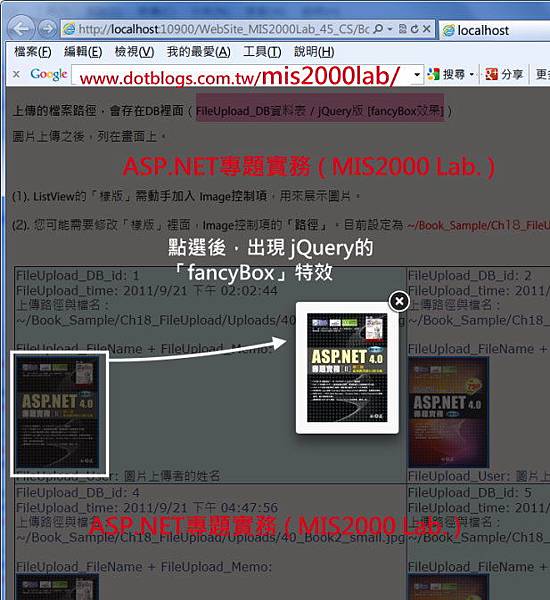

執行成果：

這個範例容易出錯的地方，就是「URL路徑」寫錯了。

不管是「看不見圖片？」、或是「jQuery效果出不來？」.....通常都是這個錯誤引起

因為我不在您身邊，這種設定上的小缺失，您得多實驗幾次

並不難解決。

很多常見的網站效果，都是引用人家現成的 jQuery套件

我也沒學過 jQuery

但我理解一些基本的網頁設定、圖片呈現的路徑...等等，一樣可以在短時間內完成。

很多人都會說：學習 ASP.NET，還是得把 HTML、JavaScript學一下

或許在這個範例裡面，初學者可以瞭解：

在程式碼以外，有哪些「網頁的基礎觀念」您還是懸空、不穩的.....

趕緊找機會補強

因為電影「追殺比爾」的經典台詞說：出來混，總是要還的！

====================================================

.aspx（畫面）的HTML原始檔（藍色的字，就是 fancyBox套件需要加入的 JavaScript檔、CSS樣式檔）

====================================================

<%@ Page Language="C#" ....省略.... %>

<!DOCTYPE html>

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title></title>


    <script type="text/javascript" src="fancyBox/lib/jquery-1.8.2.min.js"></script>


    <script type="text/javascript" src="fancyBox/lib/jquery.mousewheel-3.0.6.pack.js"></script>


    <script type="text/javascript" src="fancyBox/source/jquery.fancybox.js?v=2.1.3"></script>
    <link rel="stylesheet" type="text/css" href="fancyBox/source/jquery.fancybox.css?v=2.1.2" media="screen" />


    <link rel="stylesheet" type="text/css" href="fancyBox/source/helpers/jquery.fancybox-buttons.css?v=1.0.5" />
    <script type="text/javascript" src="fancyBox/source/helpers/jquery.fancybox-buttons.js?v=1.0.5"></script>


    <link rel="stylesheet" type="text/css" href="fancyBox/source/helpers/jquery.fancybox-thumbs.css?v=1.0.7" />
    <script type="text/javascript" src="fancyBox/source/helpers/jquery.fancybox-thumbs.js?v=1.0.7"></script>


    <script type="text/javascript" src="fancyBox/source/helpers/jquery.fancybox-media.js?v=1.0.5"></script>

    <script type="text/javascript">
        $(document).ready(function () {
            /*
            * Simple image gallery. Uses default settings
            */

            $('.fancybox').fancybox();

            /*
            * Different effects
            */

            // Change title type, overlay closing speed
            $(".fancybox-effects-a").fancybox({
                helpers: {
                    title: {
                        type: 'outside'
                    },
                    overlay: {
                        speedOut: 0
                    }
                }
            });

            // Disable opening and closing animations, change title type
            $(".fancybox-effects-b").fancybox({
                openEffect: 'none',
                closeEffect: 'none',

                helpers: {
                    title: {
                        type: 'over'
                    }
                }
            });

            // Set custom style, close if clicked, change title type and overlay color
            $(".fancybox-effects-c").fancybox({
                wrapCSS: 'fancybox-custom',
                closeClick: true,

                openEffect: 'none',

                helpers: {
                    title: {
                        type: 'inside'
                    },
                    overlay: {
                        css: {
                            'background': 'rgba(238,238,238,0.85)'
                        }
                    }
                }
            });

            // Remove padding, set opening and closing animations, close if clicked and disable overlay
            $(".fancybox-effects-d").fancybox({
                padding: 0,

                openEffect: 'elastic',
                openSpeed: 150,

                closeEffect: 'elastic',
                closeSpeed: 150,

                closeClick: true,

                helpers: {
                    overlay: null
                }
            });

            /*
            * Button helper. Disable animations, hide close button, change title type and content
            */

            $('.fancybox-buttons').fancybox({
                openEffect: 'none',
                closeEffect: 'none',

                prevEffect: 'none',
                nextEffect: 'none',

                closeBtn: false,

                helpers: {
                    title: {
                        type: 'inside'
                    },
                    buttons: {}
                },

                afterLoad: function () {
                    this.title = 'Image ' + (this.index + 1) + ' of ' + this.group.length + (this.title ? ' - ' + this.title : '');
                }
            });

            /*
            * Thumbnail helper. Disable animations, hide close button, arrows and slide to next gallery item if clicked
            */

            $('.fancybox-thumbs').fancybox({
                prevEffect: 'none',
                nextEffect: 'none',

                closeBtn: false,
                arrows: false,
                nextClick: true,

                helpers: {
                    thumbs: {
                        width: 50,
                        height: 50
                    }
                }
            });

            /*
            * Media helper. Group items, disable animations, hide arrows, enable media and button helpers.
            */
            $('.fancybox-media')
                .attr('rel', 'media-gallery')
                .fancybox({
                    openEffect: 'none',
                    closeEffect: 'none',
                    prevEffect: 'none',
                    nextEffect: 'none',

                    arrows: false,
                    helpers: {
                        media: {},
                        buttons: {}
                    }
                });

            /*
            * Open manually
            */

            $("#fancybox-manual-a").click(function () {
                $.fancybox.open('1_b.jpg');
            });

            $("#fancybox-manual-b").click(function () {
                $.fancybox.open({
                    href: 'iframe.html',
                    type: 'iframe',
                    padding: 5
                });
            });

            $("#fancybox-manual-c").click(function () {
                $.fancybox.open([
                    {
                        href: '1_b.jpg',
                        title: 'My title'
                    }, {
                        href: '2_b.jpg',
                        title: '2nd title'
                    }, {
                        href: '3_b.jpg'
                    }
                ], {
                    helpers: {
                        thumbs: {
                            width: 75,
                            height: 50
                        }
                    }
                });
            });

        });
   </script>
    <style type="text/css">
        .fancybox-custom .fancybox-skin {
            box-shadow: 0 0 50px #222;
        }
        .auto-style1 {
            background-color: #FF99CC;
        }
   </style>
</head>
<body>
    <form id="form1" runat="server">
    <div>

        <asp:ListView ID="ListView1" runat="server" DataKeyNames="FileUpload_DB_id"
            DataSourceID="SqlDataSource1" GroupItemCount="3">
            <AlternatingItemTemplate>
                <td runat="server" style="background-color: #FFFFFF;color: #284775;">
                    FileUpload_DB_id:
                    <asp:Label ID="FileUpload_DB_idLabel" runat="server"
                        Text='<%# Eval("FileUpload_DB_id") %>' />
                    <br />FileUpload_time:
                    <asp:Label ID="FileUpload_timeLabel" runat="server"
                        Text='<%# Eval("FileUpload_time") %>' />
                    <br />上傳路徑與檔名：<br />
                    <asp:Label ID="test_idLabel" runat="server" Text='<%# "~/Book_Sample/Ch18_FileUpload/Uploads/" + Eval("FileUpload_FileName") %>' />
                    <br />
                    <br />

                    FileUpload_FileName + FileUpload_Memo:<br />
        <a class="fancybox" href='<%# "Uploads/" + Eval("FileUpload_FileName") %>' data-fancybox-group="gallery">
                    <asp:Image ID="Image1" runat="server"
                         ImageUrl='<%# "~/Book_Sample/Ch18_FileUpload/Uploads/" + Eval("FileUpload_FileName") %>'
                       GenerateEmptyAlternateText="true" AlternateText='<%# Eval("FileUpload_Memo") %>' />
        </a>

                    <br />FileUpload_User:
                    <asp:Label ID="FileUpload_UserLabel" runat="server"
                        Text='<%# Eval("FileUpload_User") %>' />
                    <br />
                </td>
            </AlternatingItemTemplate>

            <GroupTemplate>
                <tr ID="itemPlaceholderContainer" runat="server">
                    <td ID="itemPlaceholder" runat="server">
                    </td>
                </tr>
            </GroupTemplate>

            <ItemTemplate>
                <td runat="server" style="background-color: #E0FFFF;color: #333333;">
                    FileUpload_DB_id:
                    <asp:Label ID="FileUpload_DB_idLabel" runat="server"
                        Text='<%# Eval("FileUpload_DB_id") %>' />
                    <br />FileUpload_time:
                    <asp:Label ID="FileUpload_timeLabel" runat="server"
                        Text='<%# Eval("FileUpload_time") %>' />
                    <br />上傳路徑與檔名：<br />
                    <asp:Label ID="test_idLabel" runat="server" Text='<%# "~/Book_Sample/Ch18_FileUpload/Uploads/" + Eval("FileUpload_FileName") %>' />
                    <br />
                    <br />

                    FileUpload_FileName + FileUpload_Memo:<br />

        <a class="fancybox" href='<%# "Uploads/" + Eval("FileUpload_FileName") %>' data-fancybox-group="gallery">
                    <asp:Image ID="Image1" runat="server"
                         ImageUrl='<%# "~/Book_Sample/Ch18_FileUpload/Uploads/" + Eval("FileUpload_FileName") %>'
                        GenerateEmptyAlternateText="true" AlternateText='<%# Eval("FileUpload_Memo") %>' />
        </a>

                    <br />FileUpload_User:
                    <asp:Label ID="FileUpload_UserLabel" runat="server"
                        Text='<%# Eval("FileUpload_User") %>' />
                    <br />
                </td>
            </ItemTemplate>
            <LayoutTemplate>
                <table runat="server">
                    <tr runat="server">
                        <td runat="server">
                            <table ID="groupPlaceholderContainer" runat="server" border="1"
                                style="background-color: #FFFFFF;border-collapse: collapse;border-color: #999999;border-style:none;border-width:1px;font-family: Verdana, Arial, Helvetica, sans-serif;">
                                <tr ID="groupPlaceholder" runat="server">
                                </tr>
                            </table>
                        </td>
                    </tr>
                    <tr runat="server">
                        <td runat="server"
                            style="text-align: center;background-color: #5D7B9D;font-family: Verdana, Arial, Helvetica, sans-serif;color: #FFFFFF">
                            <asp:DataPager ID="DataPager1" runat="server" PageSize="12">
                                <Fields>
                                    <asp:NextPreviousPagerField ButtonType="Button" ShowFirstPageButton="True"
                                        ShowLastPageButton="True" />
                                </Fields>
                            </asp:DataPager>
                        </td>
                    </tr>
                </table>
            </LayoutTemplate>
        </asp:ListView>

        <asp:SqlDataSource ID="SqlDataSource1" runat="server"
            ConnectionString="<%$ ConnectionStrings:testConnectionString %>"
            SelectCommand="SELECT * FROM [FileUpload_DB]"></asp:SqlDataSource>

    </div>

    </form>
</body>
</html>

FileUpload_DB這個資料表，請看書本裡面附的資料庫，裡面就有。
或是參閱本文一開始的文章，有教您自己建立此資料表。
